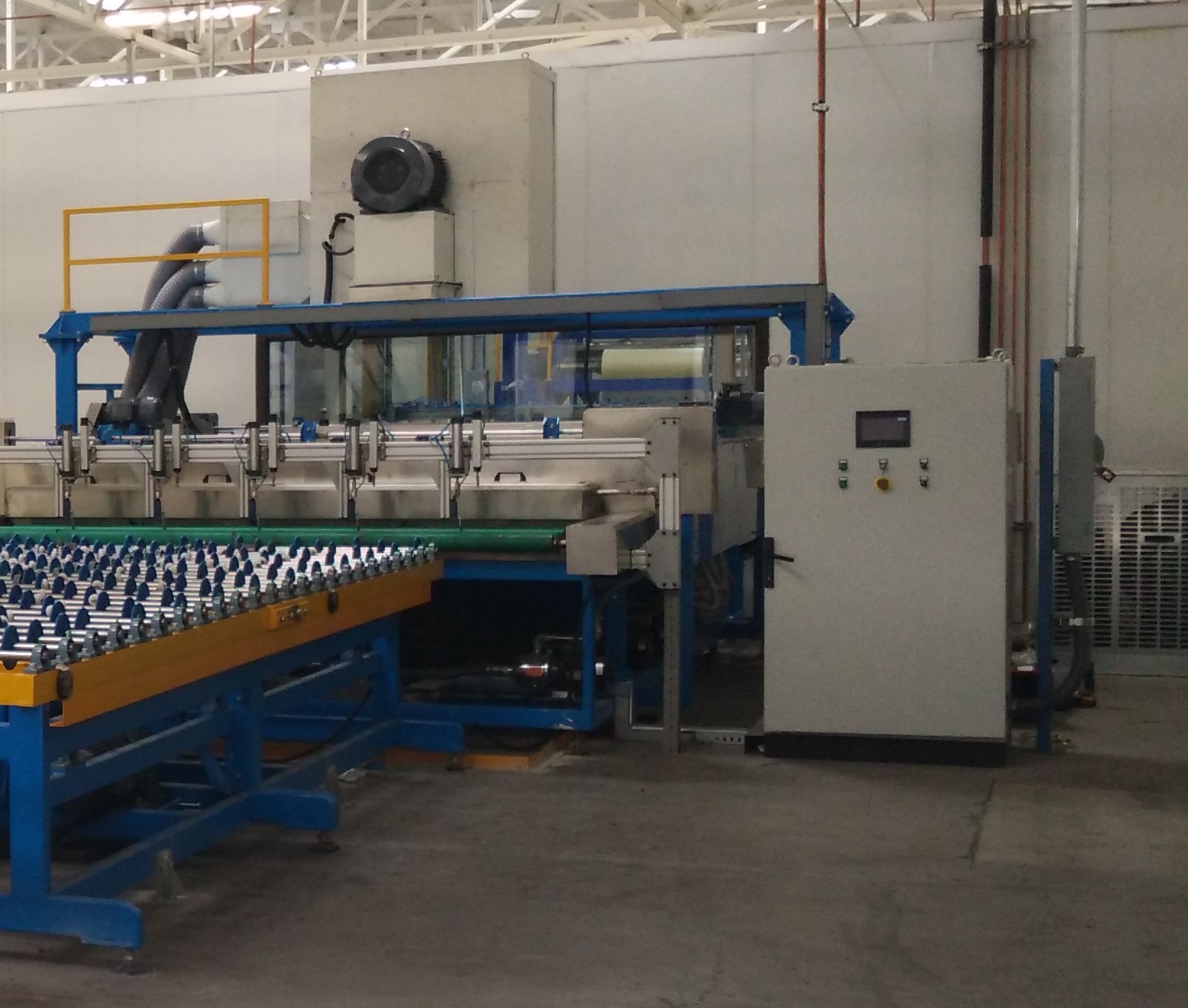

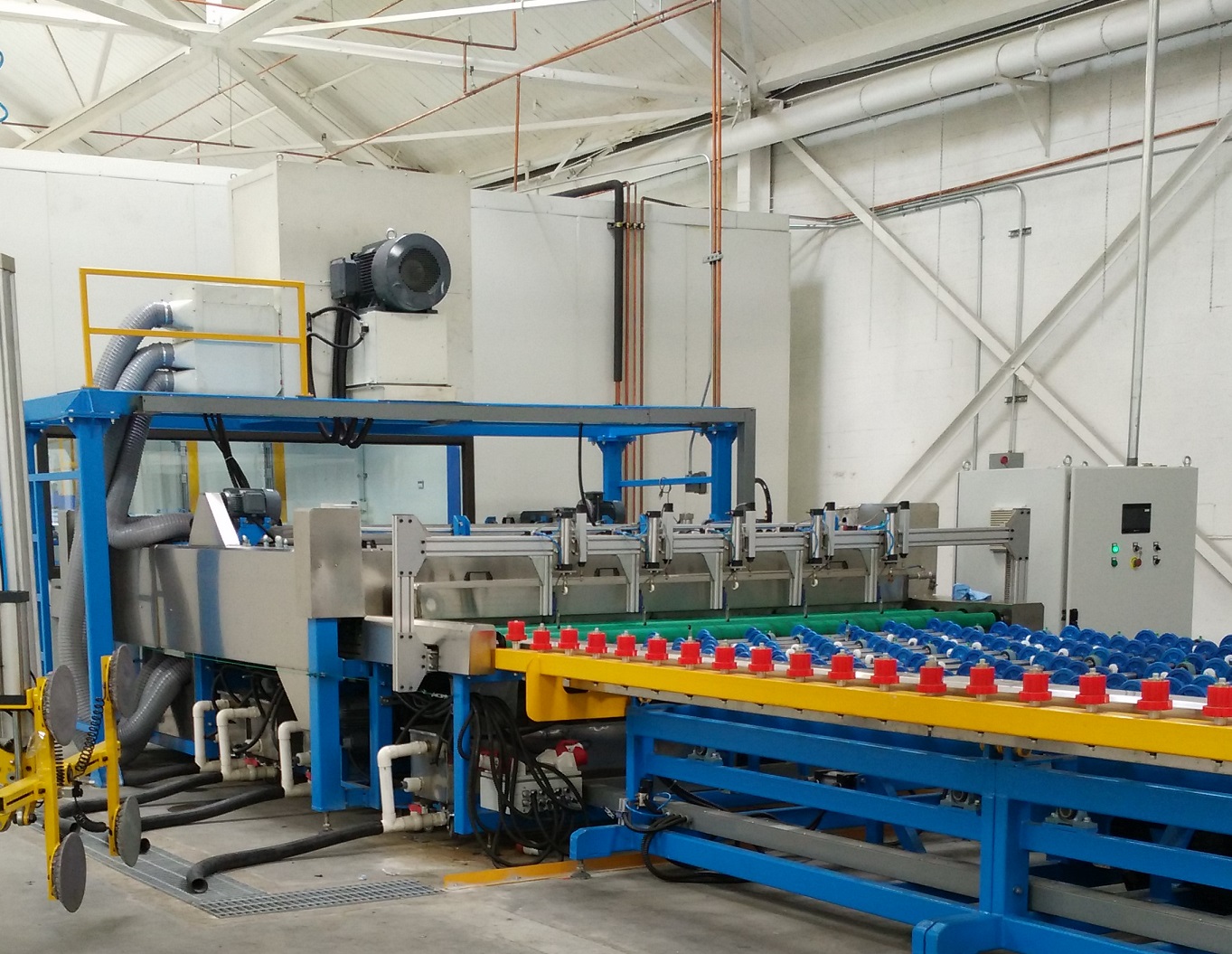

HORIZONTAL WASHING MACHINE
WH Series Horizontal Washing and Drying Machines are designed and manufactured with the state-of-the-art technology, high quality materials and components, and are a good combination of high efficiency, power saving, easy to operate and high reliability.
● The whole body is mainly made of SS304.
● Fan and control are integrated on the main unit.
● Automatic operation realizes automatic thickness adaption, Automatic coat-side detection and Off-if-Idle.
● Thermostatic water heater enables the machine to wash glass with set-temperature hot water.
● Standard 3-Brush and 2-air-knife structure can wash glass over 10m/min (33ft/min).
Standard Models (3 Brush + 2 Air Knives Type)
Model |
Max Glass Width |
Total Installed |
Fan | Pumps |
WH12CB3N2 |
1220mm | 10kw | 1 x 5.5kw |
3 x 0.37kw |
WH15CB3N2 |
1530mm | 13kw |
1 x 7.5kw |
3 x 0.55kw |
WH22CB3N2 |
2250mm | 23kw |
1 x 15kw |
4 x 0.55kw |
WH25CB3N2 |
2500mm | 24kw |
1 x 15kw |
4 x 0.55kw |
WH28CB3N2 |
2800mm | 28kw |
1 x 18.5kw |
4 x 0.55kw |
WH30CB3N2 |
3050mm | 33kw |
1 x 22kw |
4 x 0.75kw |
WH33CB3N2 |
3300mm | 42kw |
1 x 30kw |
4 x 0.75kw |
WH36CB3N2 |
3660mm | 51kw |
2 x 18.5kw |
4 x 0.75kw |
